Thruster Specifications & Versions

1. Two Configurations Available

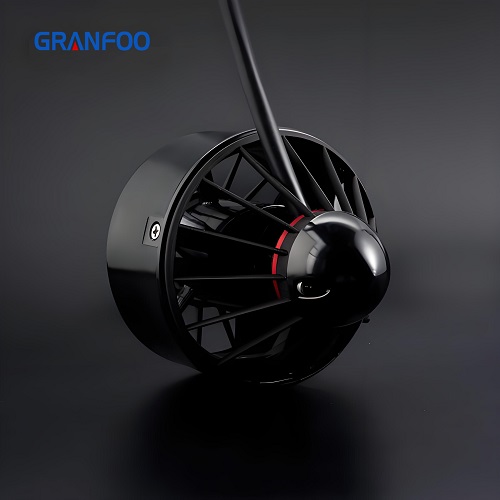

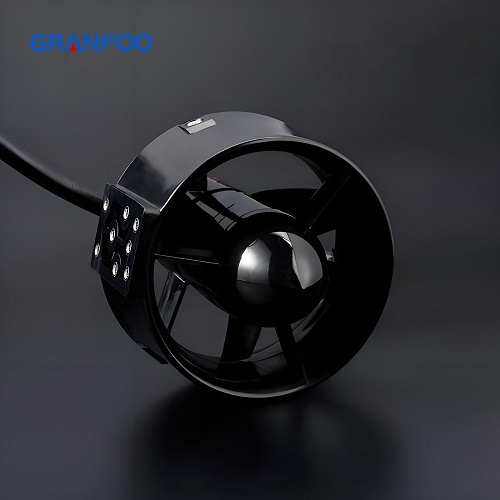

• Educational Version: Features a protective grille (shown in the image), ideal for training purposes. Note: The grille may slightly reduce thrust efficiency.

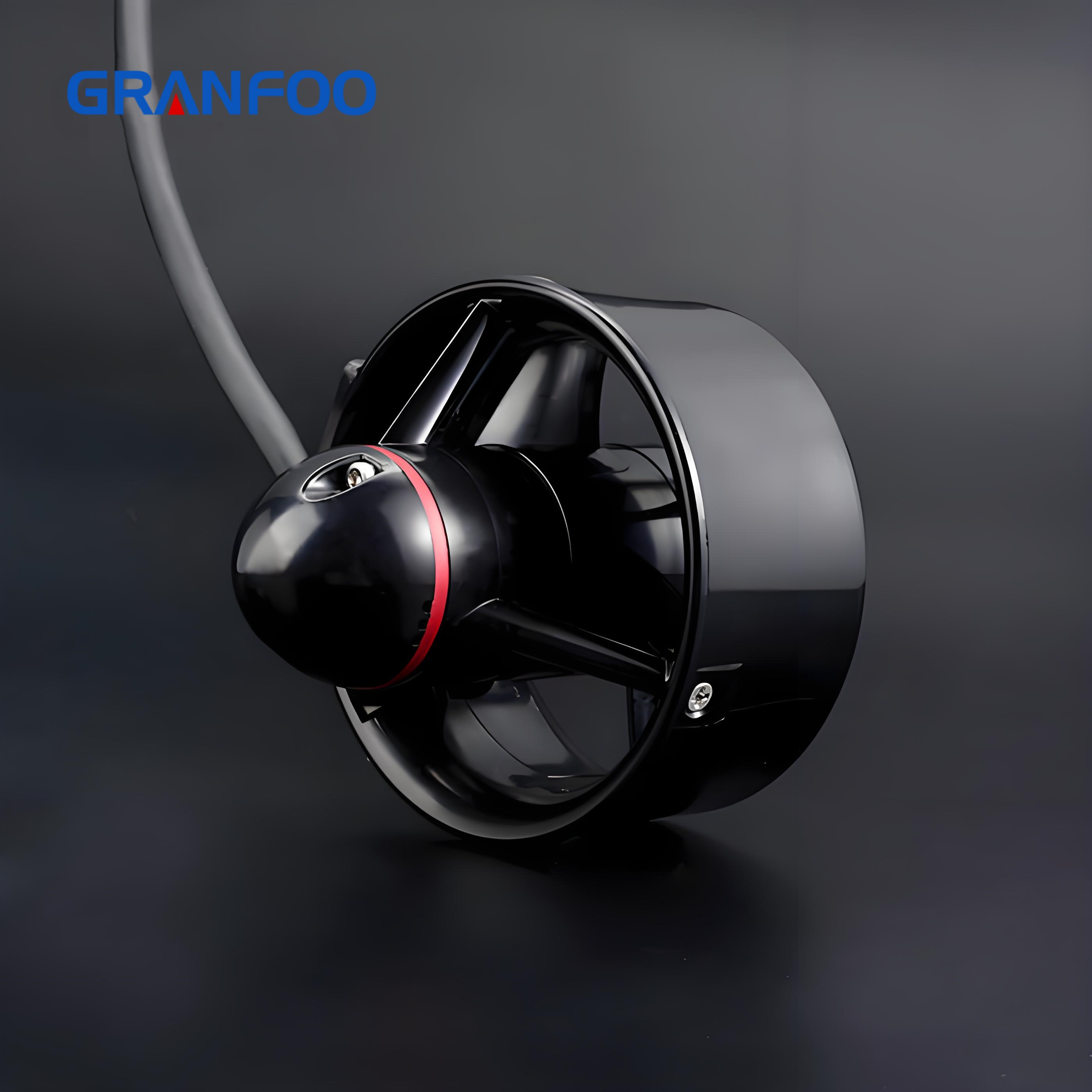

• Standard Version: No grille (recommended for operational use), delivering maximum power output.

2. Advanced Motor Technology

• Optimized Performance: Open-frame motor engineered for extended service life, high pressure resistance, and superior corrosion resistance. Outperforms comparable motors in efficiency.

• Innovative Sliding Bearings:

  • Material: Special polymer composite

  • Key Advantages: Ultra-low friction, corrosion-proof, self-lubricating

  • vs Traditional Bearings: Eliminates maintenance needs of metal/plastic bearings and operates reliably in harsh environments (seawater, turbid water, etc.).

3. Recommendations

• For non-educational applications, the grille-free standard version is strongly advised to maintain full thrust capability.

• The motor’s self-sustaining design minimizes lifetime maintenance costs.

Product Features

• Big Power and high efficiency

This thruster design is based on the popular T200 thruster, it has a max power of thrust of 7.5 kg.

•  Long life and corrosion resistance

The motor with a simple structure, and open waterproof design, it will not easy corrosion.

•  With high strength and a lightweight

This new T200 is use high-quality material, which has a better surface.

•  Good motor inside

The surface of the magnetic steel is protected by epoxy resin coating, and it is made of 316 stainless steel bearing, which is corrosion-resistant and rust-resistant.

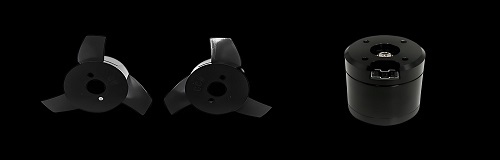

•  Custom Propeller

Custom design propeller with a low cost, both CW and CCW is accepted.

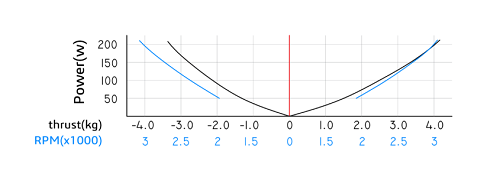

                                                                                                                  12V Diagram Distribution

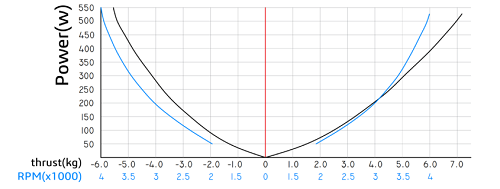

16V Diagram Distribution

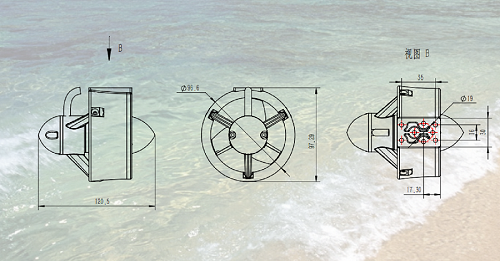

Drawings of The Thruster
